Singer 301 Accessories from the "List of Parts" Book

The first official "List of Parts" was published in May 1952. However, this was only for Machine No. 301-1 (Short Bed Cabinet Model). We will not use this book to list the accessories, instead we will use the April 1955 "List of Parts" that include Machine Nos. 301-1, 301-2 and 301-3.

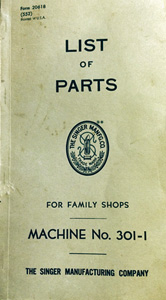

Singer "List of Parts" for the Machine 301-1, Form 20618 (552), May 1952



List of Parts for Singer Model 301 & 301A



 Machine Nos. 301-1, 301-2 and 301-3 designates different classes of the Singer 301.

 Without Carrying Case, With Carrying Case, Sewing Schools and Cutting Tables Sets.

301-1 (Short Bed Cabinet Model)  301-2 (Long Bed with Carry Case) 301-3 (School use Only)

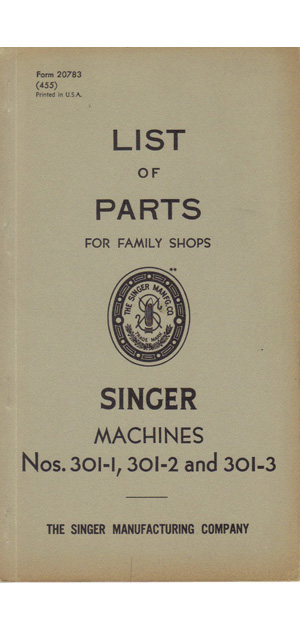

Singer List of Parts, Form 20783 (455), April 1955



Standard Accessories included with Sewing Machine



  • Carrying Case, #E24984: comes with a light brown grass cloth covered trapezoid case with brown leather trim, beige handle and oil can, included with machine 301-2. (Long Bed sewing machine with Carrying Case Set No. 269)





                                 301-1 Foot Controller #194828     301-2 Foot Controller #194584

  • Wiring Harness Complete, #196222: Cabinet use #194828 Foot Controller, included with sewing machine.

  • Wiring Harness Complete, #196778: Carrying case #194584 Foot Controller, included with sewing machine.



  • Manual for Singer 301: First Instructions Manual issued in 1951, (1051) October 1951, 60 pages, included with sewing machine.



  • Manual for Singer 301/301A: Instruction Manual issued in 1952-1955, Revised (652, 153, 653, 1153), 64 pages, included with sewing machine.



  • Manual for Singer 301A: Instruction manuals issued in 1956-1958, Revised (356), 70 pages, included with sewing machine.



To You...as the Owner of a new Singer Sewing Machine!

Along with the Green Cover Instruction Manual you also received this pamphlet: To You...as the Owner of a new Singer Sewing Machine! As a Singer Owner You are assured complete service and a complete course in home sewing. Inside the pamphlet it shows the lessons that you will receive.





  • Rotary Hook Bobbin, #45785: class 221-301, included with sewing machine.





  • Shuttle Case, (bobbin case), #45751 - Simanco #45750: included with sewing machine.

The OEM bobbin case will have SIMANCO USA 45750 stamped. The number 45751 is the part number for the complete assembly and is not marked on the bobbin case. The picture with the white box marked 45751 is an aftermarket part, not original. It may or may not be stamped 45751, again not original. The picture on the right is the original bobbin case and is stamped with SIMANCO USA 45750. For originality this is the one you want. The Singer 221 Featherweight uses the exact same bobbin case stamped SIMANCO USA 45750.



  • All Purpose Pressure Foot #170071: included with sewing machine.





  • Seam Guide Set, #160934: original package set contains #25527 guide and screw. Sold separately.

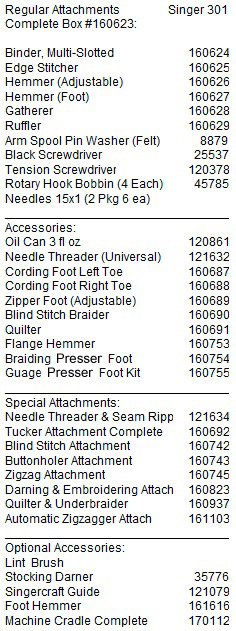

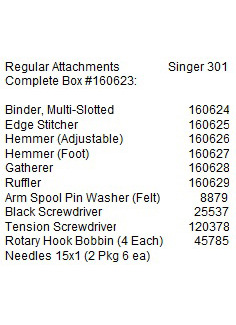

Regular Attachments Complete Box #160623

Included with Sewing Machine

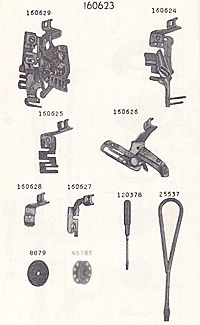

Included in the 160623 Attachment Set:



  • Multiple Slotted Binder, Singer #160624: applies unfolded bias binding and folded commercial binding to the seams or edges, also does piping and binding in one operation.



  • Edge Stitcher, Singer #160625: sews lace together with a very narrow seam, also sews piping, folded bias tape, or military braid. Stitches wide hems, makes French seams, sews tucks.



  • Adjustable Hemmer, Simanco #160626: makes hems from 3/16" to 15/16" wide.





  • Foot Hemmer, Simanco#160627: the foot hemmer may be used for hemming edge of material, making hemmed or felled seams and for hemming and sewing on lace in one operation.



  • Gather Foot, Simanco #160628: creates shirring or gathering stitches, similar to smocking.





  • Ruffler, Singer #160629: makes ruffles, sews ruffles to project in one operation, pipes ruffles, and does plaiting (pleating) of all kinds.



  • Arm Spool Pin Washer (Black Cloth), Singer #8879:



  • Black Screwdriver, Simanco #25537:



  • Tension Screwdriver, Simanco #120378:



  • Rotating Hook Bobbin, Singer #45785: 4 each class 221 and 301.

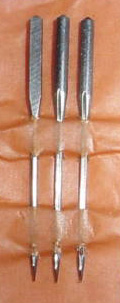

  • Singer Needles, 15x1: 2 packs - 6 needles, Original Needle Pack. (Not Shown on Diagram)

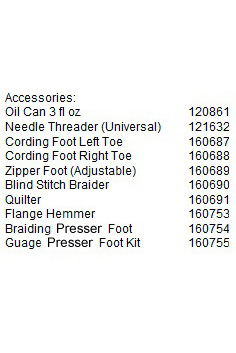

Accessories: Sold Separately





  • Oil Can Singer #120861: comes with 3 fluid ounce lead top oval oiler tin. Included with carrying case.

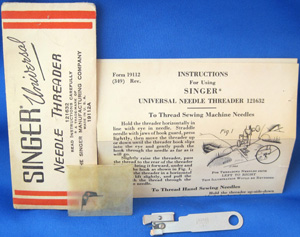

  • Singer Needle Threader, #121632: Easy way to thread your 301 sewing machine.





  • Singer 301 Left Toe Cording Foot, Simanco #160687:





  • Singer 301 Right Toe Cording Foot, Simanco #160688:

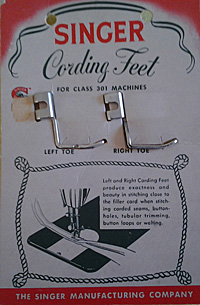

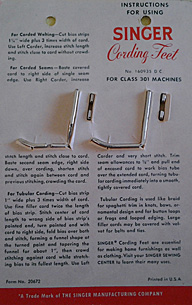

  • Cording Feet Set, #160935: has both #160687 and 160688





  • Singer 301 Zipper Foot, Singer #160689:   Part No. later changed to #161166





  • Blind Stitch Braider, #160690: applies braid to fabric, upside-down, guiding it into place.

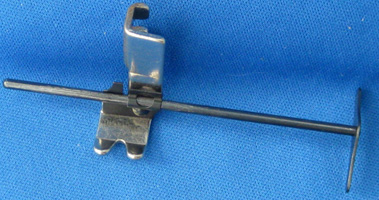

  • Singer 301 Quilter, Simanco #160691: This is also included with the Quilter and Underbraider Kit #160937.





  • Singer 301 Flange Hemmer Foot, 1/16", #160753: for making a 1/16" hem and is used for simulating a rolled hem on fine materials such as georgette, chiffon and silk making it unnecessary to paper against the feed dog. Discontinued in 1955





  • Singer 301 Braiding Presser Foot, 1/8", #160754: for braiding, for art work, for braid 1/16" to 3/16" wide. Pass the braid through the hole on the braider in front of the needle and follow the pattern to be braided. This slant shank braiding foot fits in place of the standard presser foot for the 301.





  • Gauge Presser Foot For Class 301 Machines, Singer #160755: This foot replaces the regular presser foot. One gauge for left side of needle, three gauges for right side of needle and a small removable toe. Original Packet with Printed Instructions.





Special Attachments: Sold Separately





  • Needle Threader & Seam Ripper, Singer #121634: a combination tool that has a 121632 Needle Threader on one end and a 121634 Seam ripper (razor blade) on the other end. Listed in Parts Book



  • Singer Tucker Class 301 Complete, Singer #160692: tucks adds smartness and interest to dresses, blouses, neckwear, children cloths, and lingerie. Listed in Parts Book





  • Singer Blind Stitch Attachment Complete for Machine 301, Singer #160742: Discontinued in 1955



  • Singer Buttonholer Attachment Complete for Machine 301, Singer #160743: Listed in Parts Book



  • 4 Extra Templates #160668 for Machine 301 Buttonholer, Singer #160743,: 3/8", 1/2", 15/16" Straight and 5/8" Keyhole.





  • Singer Zigzag Attachment Complete for Machine 301, Singer #160745: This is only the zigzag attachment and is different than the automatic Zigzagger attachment with cams.





  • Darning and Embroidery Attachment, #160823: for darning and embroidering. Complete Box with Instructions. Listed in Parts Book



  • Singer Quilter and Underbraider For Class 301 Machines, Singer #160937: This includes a complete Quilter #160691 that includes the Presser Foot and Presser Foot Braid Guide. It also includes the Underbraider Singer #160927. Original Packet.



  • Automatic Zigzagger, Singer 301, Simanco #161103: comes with 4 cams for zigzag stitch, blind stitch, domino stitch, and arrowhead stitch. Additional cam can be purchased for more embroidery stitches. Listed in Parts Book as #160986 / For the 301 you can have either Part Numbers : 161103 or 160986.





  • 4 Extra Stitch Patterns, Singer #161008: for Singer 301 Zigzagger, Simanco #161103 (Listed Above): Scallops #161004, Multiple Stitch #161005, Walls of Troy #161006 and Icicle #161007.



Optional Accessories: Sold Separately



  • Lint Brush: Original Package. (Not shown on Diagram)



  • Stocking Darner #35776: works on all lock stitch sewing machine. For mending stocking or socks. Original Box with Instructions.



  • Singercraft Guide, #121079: The Singer craft guide is a long metal ruler with a slit down the middle. All you do is wind material around it and sew down the gap. ( The box itself is a Singercraft Guide Kit #121079 and the Guide itself is marked #120987) Discontinued in 1951

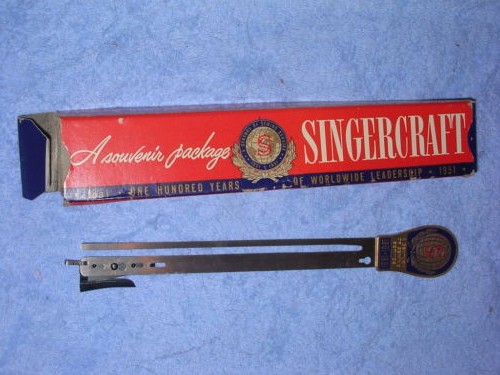

  • Centennial Singercraft Guide, #121079: Only issued during the Singer Centennial Year 1951. The guide itself is not marked with any number. It was a Special Edition of the Singercraft Guides and is the only #2 guide to have the design presented upside down as you sew. It was also the very last Singercraft guide made. Discontinued in 1951



  • Singer Slant Needle, Hemmer Foot, Singer #161616: For all slant shank machines. Fits in place of standard foot to form and stitch perfectly turned hems without tacking or ironing. Form a double 1/8" fold at the edge of the fabric and crease it for about 2". Place the creased hem under the foot and stitch through the fold. Hold the thread ends at the back and the single fold in front of the hemmer and lift the fold into the hemmer scroll. While sewing, guide the fabric edge into the mouth of the scroll with the right hand.



  • Machine Cradle and Latch Complete, #170112: If you have want to put your Singer 301 or 301A into a Singer sewing cabinet than you need all the items above to make it work. Listed in Parts Book





Other Singer 301 Items of Interest: Sold Separately

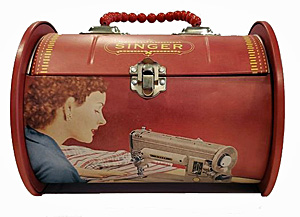

  • Vintage Design Singer Model 301 Sewing Tin: 3 different styles of tins to store accessories, bobbins, thread spools, anything you want. All have the original October 1952 sales brochure picture.





  • Singer Teacher's Textbook of Machine Sewing: This nice to have book shows how to use all your Singer sewing machine attachments. It also covers most of the vintage sewing machines and especially the Singer 301. Threading diagrams, cleaning and oiling. This book is just filled with information. Copyright 1953. The outline of a Singer Model 301 is on the front cover. Nice.
